Vertical rubber flange is our recommended method for soundreduction in schools, hospitals, hotels, meeting rooms, offices.
Reduce stepsound with 10-12 dB.
F 25, is adapted to TSS 25 L and TSS 20 FA
| Bilde | Produkt |
Step |  DWG 2D |
IFC |
PDF |
|---|---|---|---|---|---|
 | GF 25 | GF 25 | GF 25 DWG 2 D | GF 25 | GF 25 Prod tegn |
GF 100, s adapted to TSS/RVK 101 P
| Picture | Article |
Step | DWG 2D |
IFC |
PDF |
|---|---|---|---|---|---|
 | GF 100 | GF 100 | GF 100 DWG 2 D | GF 100 | GF 100 |
GF 102, is adapted to TSS 102
| Picture | Article |
Step | DWG 2D |
IFC |
PDF |
|---|---|---|---|---|---|
 | GF 102 | GF 102 | GF 102 DWG 2 D | GF 102 | GF 102 |
Connection between stair/landing
TSS 25 L is a cost-saving "All in one" connection without the need for a corbel solution.

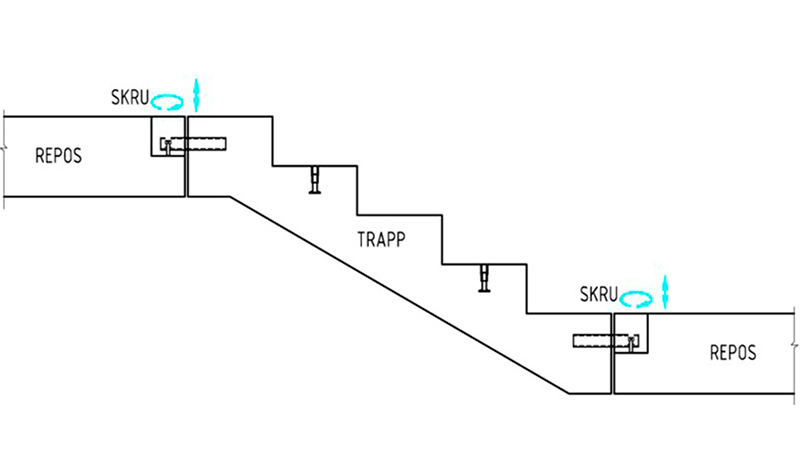

- TSS 25 L can be used as a lifting point. Quick and easy installation on the construction site (see picture under).
- No lifting anchor or flicking of stairs afterwards.
- Fast and easy leveling, flight to landing.
- Lifting device for lifting and handling the element in production, saves several lifting anchors.
- Avoids corbel solution.
- Efficient assembly on construction site, avoids shimming. Estimated time saving is 10-15% on construction site.
- Fully reinforced.
For more information about TSS 25 L see: Memo 65 A
TSS 60 P consisting of an outer- and an inner tube.
The outer tube is made of 100% recycled PE and made to fit on the outside of the inner tube.
The inner tube will slide inside the outer tube and be pulled out and in to the recess in the wall. The inner tube is pulled out/in with a wire/return rope. The unit has a control line that indicate the correct position of the inner tube. As well as a hole for a locking bolt which ensures that the inner tube stays in the correct position. It also have user-friendly "clips" to place reinforcing bars in the correct position.
The TSS units are specially suitable where the elements are supplied with a finished surface from the factory, e.g. terrazzo.
Invisible Connections TSS 60 P is supplied in black steel or galvanized.
Capacity 57 kN, minimum landing thickness 170 mm at full capacity, 120 mm with reduced capacity.
For soundreduction combine with: IC Box 100 SRU
TSS 60 P can be used between stair and landing, see picture below.
RVK 60 P stair connection consists of outer and inner tube.
The outer tube is made from 100% recycled PE and made to fit on the outside of the inner tube.
The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically. User-friendly "clips" to place reinforcing bars in the correct position.
Invisible Connections RVK 60 P is supplied in black steel or galvanized.
Capacity 57 kN, minimum landing thickness 170 mm at full capacity, 120 mm with reduced capacity.
For soundreduction combine with IC Box 100 SRU
TSS 101 stair connections consist of an outer tube and an inner tube. It contains of two hollow core sections, where the inner tube profile fits inside the outer tube. The inner tube will slide inside the outer tube and be pulled out and in to the recess in the wall. The inner tube is pulled out/in with a wire/return rope. The unit has a control line that indicate the correct position of the inner tube. As well as a hole for a locking bolt which ensures that the inner tube stays in the correct position.
The TSS units are specially suitable where the elements are supplied with a finished surface from the factory, e.g. terrazzo.
Invisible Connections TSS 101 is supplied in black steel or galvanized.
Capacity 100 kN, minimum landing thickness 200 mm at full capacity, 170 mm with reduced capacity.
For soundreduction combine with: IC Box 100 SRU
RVK101 stair connections consist of an outer tube and an inner tube. It contains of two hollow core sections, where the inner tube profile fits inside the outer tube. The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically.
Invisible Connections TSS 101 is supplied in black steel or galvanized.
Capacity 100 kN, minimum landing thickness 200 mm at full capacity, 170 mm with reduced capacity.
For soundreduction combine with: IC Box 100 SRU
